Fully Automatic Fresh Potato Chips Frozen French Fries Production Line
Description
Basic Info
| Model NO. | NT-100 |
| Application | Chips, Potato |
| Customized | Non-Customized |
| Model | Fried Frozen French Fries Production Line |
| Material | Stainless Steel |
| Power | 273kw |
| Voltage | 380V 50Hz |
| Transport Package | Export Package |
| Specification | 273KW |
| Trademark | Always here |
| Origin | China |
| HS Code | 843860000 |
| Production Capacity | 50sets/Month |
Product Description
Fully Automatic Fresh Potato Chips Frozen French Fries Production Line
Product DescriptionWe are professional direct manufacturer for potato chips or french fries making machines in China.We have different solutions for different demands:
1: Different machines for making potato chips or french fries2: Small, medium and large capacity from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, to 1000kg/h, 2000kg/h output and workflow can be customized 3: Semi automatic or fully automatic processing machines4: Electricity or gas, diesel heating source for blanching and frying machine.5: The size of french fries and the thickness of potato chips are adjustable.6: For french fries line, we have special equipment to remove the unqualified fries.7: All machines are made of SUS304, electrical components and Siemens brand motor.8: With special designed fryer, quick heating and energy saving, enabled good performance Suitable for seafood, meat products, pasta, vegetables, other leisure food

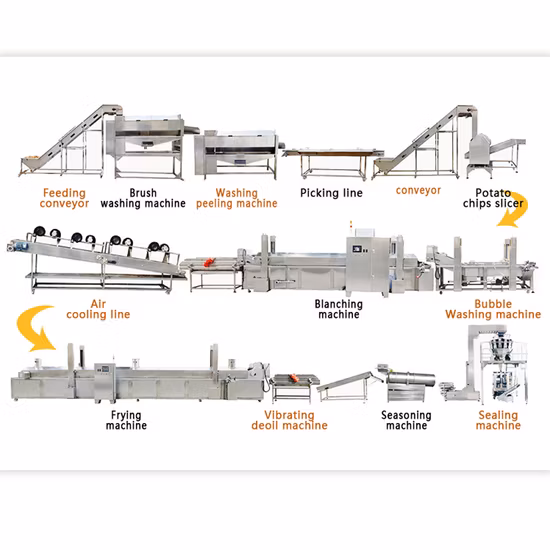

| Machine Name | Function |
| PVC Elevator | For elevating and conveying fresh potatoes into the next washing peeling machine |

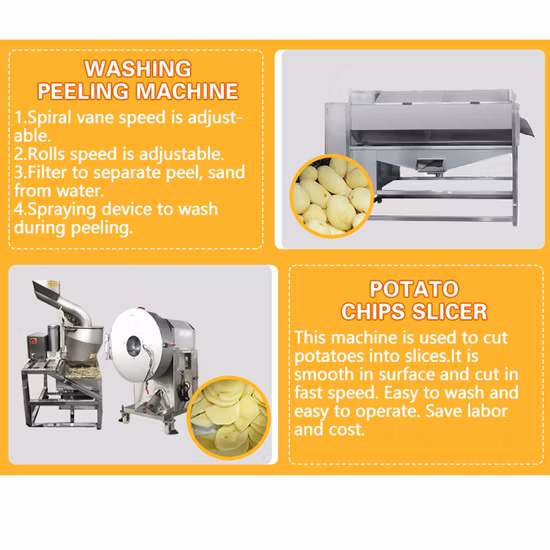

| Potato Washing and Peeling Machine | Thoroughly washing and peeling the potatoes |
| Sorting Conveyor | For manually disposing the uncleaned places and selecting the defective potatoes |
| Fries Cutting Machine | Cutting the potatoes into fries, sizes adjustable from 7*7 to 12*12mm |
| Water Tank Elevator | Water as buffer to prevent fries breakage, and simply removing starch, meanwhile elevating fries into next step |
| Fries Sorting Machine | Automatically picking up the small pieces fries |
| Bubble Washing Machine | Through high pressure waterflow and water bubbles to impact and scrub the fries to wash off the starch |
| Blanching Machine | Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries |
| Vibration Dewatering Machine | Through vibration to remove the surface water and also to transport the fries uniformly to the next machine |
| Air Drying Machine | Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oiljumped phenomenon |
| Elevating Conveyor | For elevating and conveying the fries into next fryer machine |

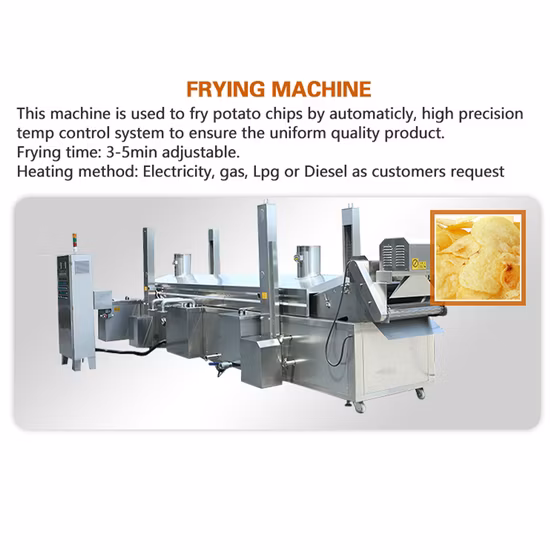

| Continuous Frying Machine | For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life |
| Vibration Deoiling Machine | Through vibration to achieve deoiling purpose, and also to convey the fries uniformly to next machine |
| Pre-cooling Machine | Through high pressure wind blowing for pre-cooling and deoiling the fries |
| Freezing Machine | Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozenproducts and prevent adhesion, achieve IQF |

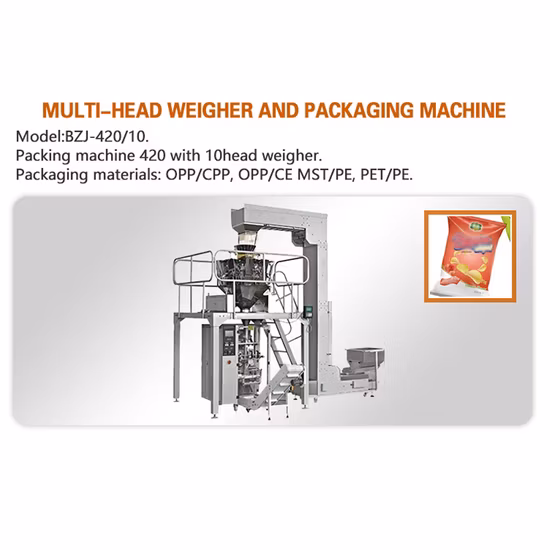

| Automatic Packing Machine | For packing the finished frozen french fries |
| Suitable for large and small potato chips, banana chips and other processing workshop, we can make suitable solution according to your workshop area and your real situation!!! | |
Packaging & Shipping
1. If you choose "Shipping by sea", we will help you arrange shipping by sea and deliver to your nearest sea port!
2. If shipping by sea, our offer is based on the CNF business terms! That means after arriving at destination seaport, buyers must pay the destination port fees (such as terminal handling fees, document fees, storage fees, ect), tax to do the customs clearance and pick up the goods themselves.
3. If shipping by sea, there is no tracking number, but it ave the waybill number (waybill is issued by shipping company, it is the shipping proof)4. When shipping by sea, it takes around 10 ~ 60 days to arrive to different country with different delivery time. If you want to know the exact time, please contact our seller.5. If you choose shipping by sea, but your country are within, it has to be transship during the transportation, sometimes, it have to do the customs clearance at the transship seaport
