GMP Vertical Ribbon Mixing Vacuum Dryer / Drier/ Drying Machine for Pharmaceutical

Basic Info

Model NO.	HW
Movement Way	Agitation
Flow	Contra-Flow
Heating Mode	Transmission
Operational Method	Intermittent
Type	Continuous Vacuum
Materials of Machine	Stainless Steel
Heating Way	Steam or Hot Water
PLC+Touch Screen	Option
Transport Package	Wood Box
Specification	100-5000L
Trademark	HYWELL
Origin	China
HS Code	8419399090
Production Capacity	2 Set Per Month

Product Description

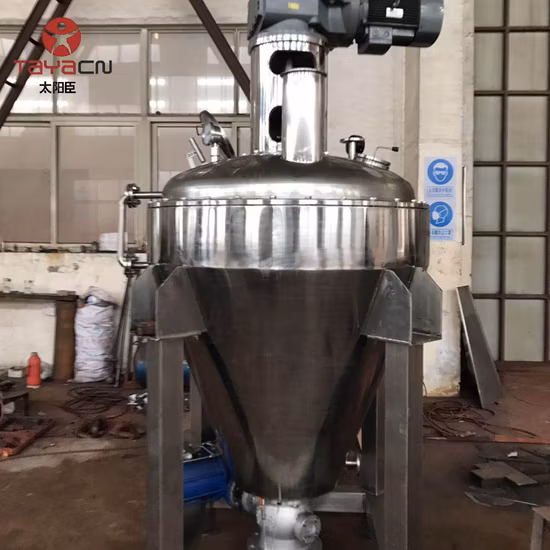

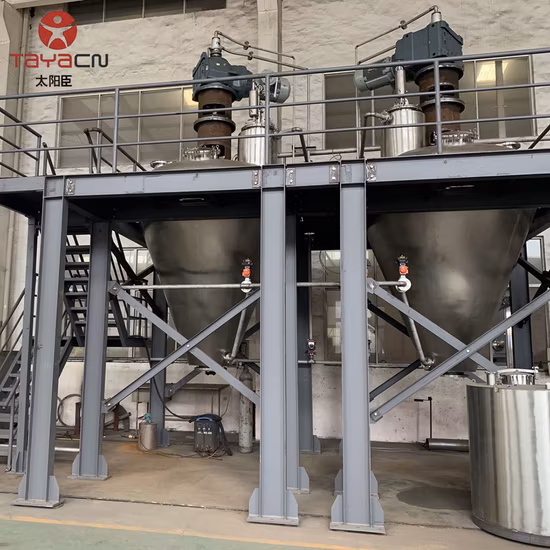

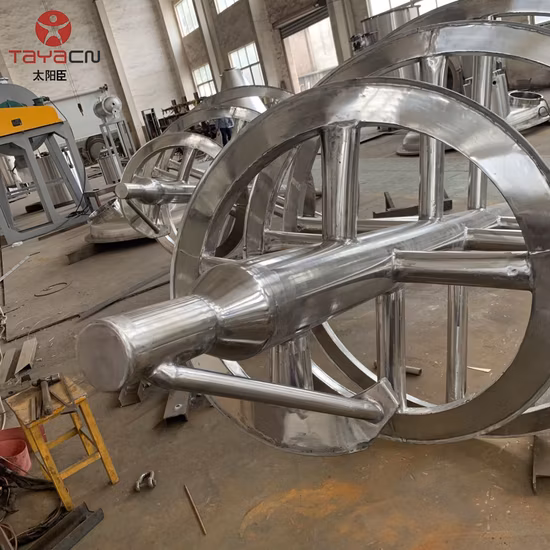

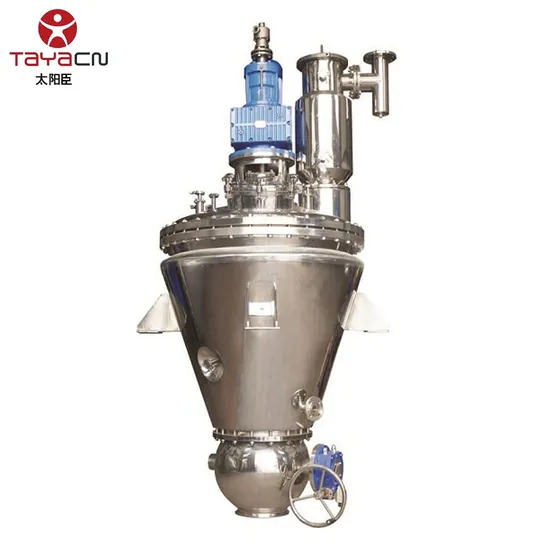

DescriptionThe Vertical Ribbon Mixing Vacuum Dryer is a kind of vertical vacuum dryer worked by batch .he machine mainly consists of the barrel with the jacket , stirring impeller ,drive system and vacuum system(if the solvent needs recovery , it should equip with the condenser device ). The wet material in the cylinder are stirred continuously by the stirring impeller during the working . The heat transferring happened between the material and the inner wall of the cylinder and make the moisture from the material is evaporated ,and wet air is pumped outside by the vacuum system. FeaturesThe design for this machine is novel ,the structure is compact , the control is simple , the drying is uniform , energy consumption is low, the application is very wide . It is applied for slow heating and drying ,cooling and solvent recovery of the crystalline and amorphous granular, powder and paste material or the thermal sensitive material .Vacuum Dryer Machine AdvantagesOur company specially designed this equipment for processing the slurry material , high viscosity and high-moisture material ,meanwhile , the solvent from the material needs to recovery . We have already apply for the patent for this equipment .Main advantages: large production per batch, high vacuum degree, very convenient to the maintenance , compared with the hollow paddle dryer , longer working life, sealing better, more convenient discharging.High efficiencyThe machine is set for drying, mixing and distillation in one of the efficient multifunctional closed vertical vacuum drying equipment complied with GMP requirement. its drying efficiency is as 3-5 times as the same specifications of other dryer. The loading capacity is double times as the same specifications of other dryer.High mixing precisionIt can reach high mixing uniform, Even mixing of different density and different particle shape material in the same batch of products, can achieve the required mixing precision in our machine. Even adding very litter materials in a large quantity of material such harsh conditions, the machine can reach perfect mixing uniform.Low shear strength stirringIt adopt low shear strength stirrer, which can gently mix the materials with low speed rotary and energy consumption. the mixing strength and time not much .Sealed designThe machine is total sealed design with all the connections include the loading and discharge nozzle fixed, which can fulfill the requirement of the materials and safe environment.

Model	Max loadvolume(L)	Speed(r/min)	Motor Power(KW)	Adaptable materials	weight (kg)
HW200	160	0~60	2.2	Non- corrosive materials, Liquid, Solid-state ,etc.	1000
HW500	400	0~60	3		1300
HW750	600	0~63	5.5		1600
HW1000	800	0~63	7.5		2000
HW1500	1200	0~63	11		2400
HW2000	1600	0~63	15		2800

About Us:From dryer machine, mixer machine to granulation machine, from unit machine to production line, we have them all. Hywell Machinery is a professional manufacturer of industrial dryer machine, powder mixing machine and granulating machine. Our flagship products include the hot air drying oven, fluid bed dryer, belt dryer, vacuum dryer, powder mixer, granules mixer machine, paste mixer machine, and High Shear granulator, Continuous granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying ,mixing and granulation solutions. Hywell Machinery constant faith is providing perfect products to customer, excellenting service to customer !Quality controlIn order to ensure quality of product, we focus on user 's requirements and control improvement and enhancement quality of products .The quality assurance mainly focus on the processes of ensuring production readiness inspection, control of raw materials and components, process control, critical parts, important parts of quality control, assembly quality control, process control testing, measurement equipment control. Pay close attention to the implementation of the quality assurance work, strictly to three inspection system of self-checking, mutual inspection, special inspection. The key point of Quality assurance is focuses on critical parts, important parts of quality control, the quality standards required by ISO9000 quality control procurement documents in order to clarify its status and acceptance of quality standards for company's re-inspections ; For critical parts and important that the key processes of identification and corresponding technical documentation, control by "the implementation of key quality control process", and complete, accurate and complete original records. Difficulties in quality assurance is a special process control, quality assurance is mainly painting, has developed a special process (painting) process documents, take the appropriate technical measures, to quality assurance.In the production process, we pay close attention to quality control of each process. Every component, every process was strictly controlled. Enhanced the quality inspection process, the establishment of the necessary quality control point, the process by a full-time staff and quality inspector for inspection and supervision. Improved testing procedures and operating instruction. OUR SERVICES Pre-sale serviceWe invite customers to visit our company and communicate on technical requirements face to face. we also can do test in our lab for free. and then we will use the testing parameter to design final machine to reach client requirement.Sale serviceResponsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.After-sale serviceWe provide installation, debugging, maintenance, training and other services (Optional); Provide relevant technical data, equipment, software and related GMP certification materials. Quality promiseOur company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality. Equipment operation safe reliable, affordable, easy to maintain. Equipment warranty period is one year, all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage, our company offer free maintenance or replacement.
